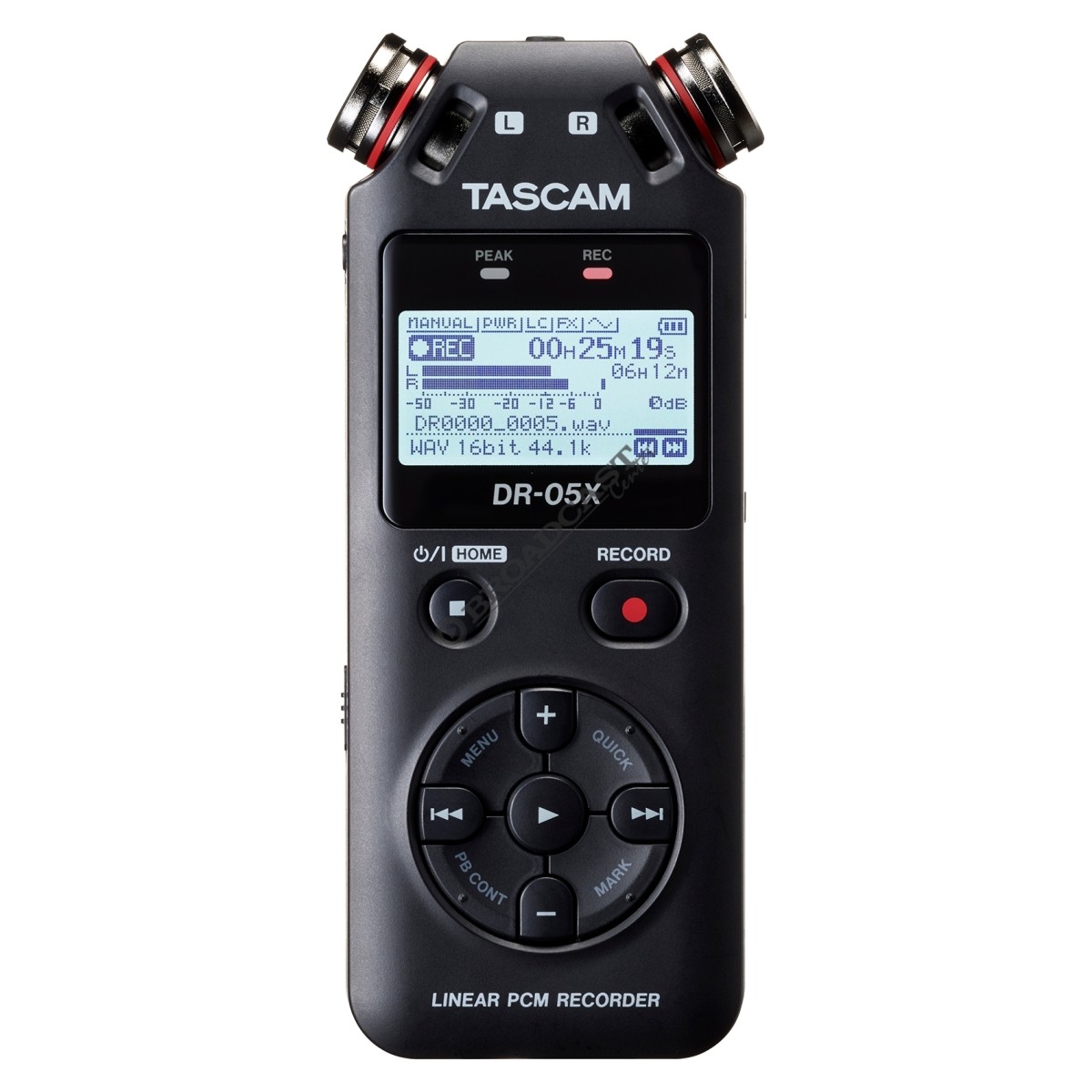

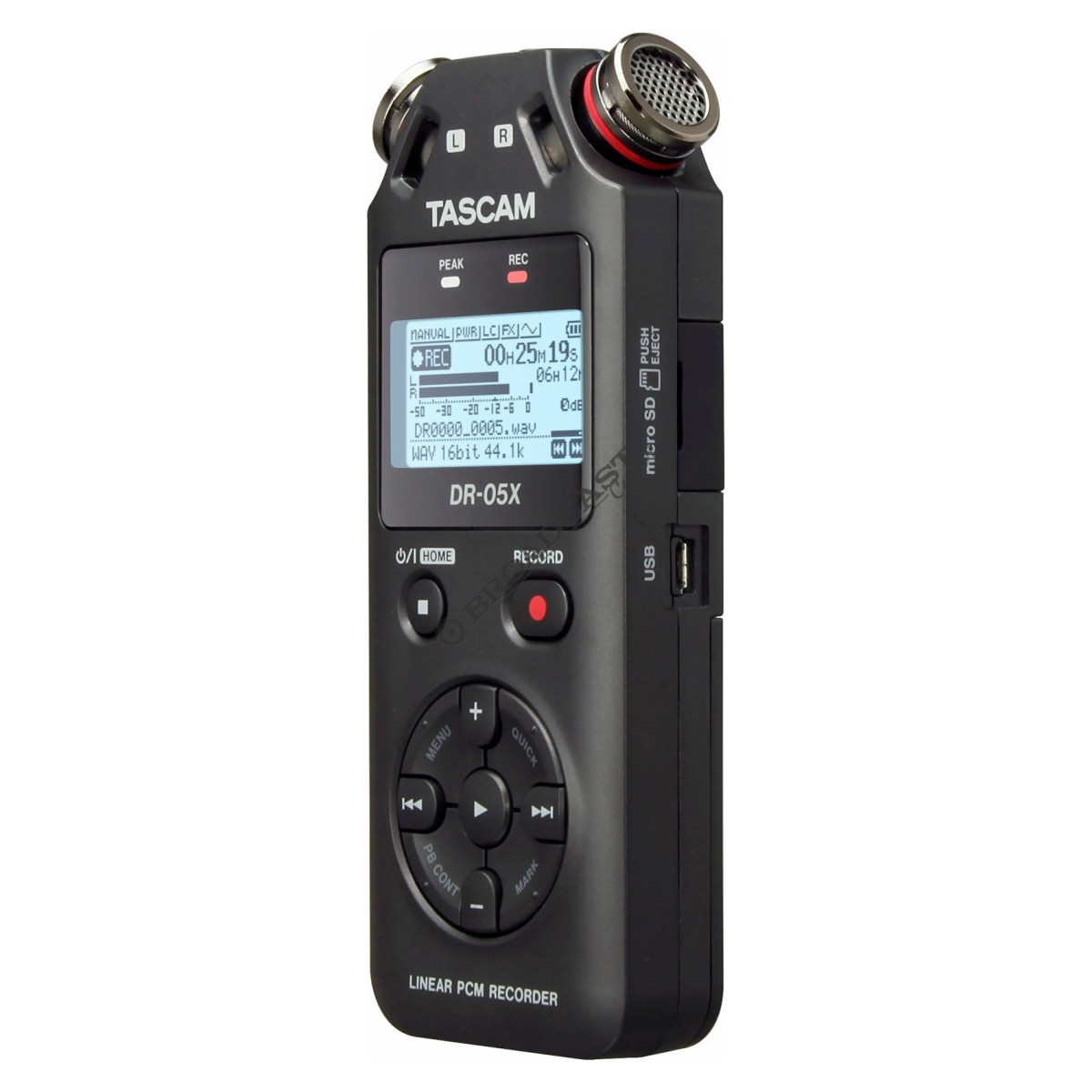

Tascam DR-05X Registratore Audio
Tascam DR-05X Registratore Audio
TASCAM presenta la nuova generazione del DR-05, il bestseller dei registratori con l?aggiunta di interfaccia audio USB per la compatibilità con laptop.
Registratore portatile entry level stereo con microfoni a condensatore integrati in configurazione cardioide.
Registra fino a 96 KHz - 24 Bit sia in Wav che in MP3.Menu ad accesso rapido e di semplice utilizzo. Ingresso per microfono esterno con connettore mini jack 3,5 mm.
Pratico e leggero.
Tascam DR-05X Registratore Audio
TASCAM presenta la nuova generazione del DR-05, il bestseller dei registratori con l?aggiunta di interfaccia audio USB per la compatibilità con laptop.
Registratore portatile entry level stereo con microfoni a condensatore integrati in configurazione cardioide.
Registra fino a 96 KHz - 24 Bit sia in Wav che in MP3.Menu ad accesso rapido e di semplice utilizzo. Ingresso per microfono esterno con connettore mini jack 3,5 mm.
Pratico e leggero.
Specifiche tecniche
| Recording Media | microSD card (64MB to 3GB), microSDHC card (4GB to 32GB), microSDXC card (up to 128GB) |
| File System | FAT16/32, exFAT |
| Recording File Format | |
| WAV / BWF | |
| Sampling Frequency | 44.1k / 48k / 96k Hz |
| Bit-depth | 16 / 24-bit |
| MP3 | |
| Sampling Frequency | 44.1k / 48k Hz |
| Recording Bit-rate | 32k / 64k / 96k / 128k / 192k / 256k / 320k bps |
| Playback Bit-rate | 32k to 320k bps, VBR, ID3TAG Ver. 2.4 |
| Number of Channels | 2-channel (Stereo) / 1-channel (Mono) |
| Playback speed control | 0.5 to 2.0 times (in 0.1 increments) * 44.1k/48kHz only |
| Built-in Microphone | Omnidirectional, Stereo |
| MIC/EXT IN | |
| Connector | 1/8" (3.5mm) Stereo Mini jack (Unbalanced, Plug-in Power) |
| Nominal Input Level | -20dBV |
| Maximum Input Level | -4dBV |
| Input Impedance | 18k? or more (PLUG IN PWR: OFF) 2k? or more (PLUG IN PWR: ON) |
| PHONES/LINE OUT | |
| Connector | 1/8" (3.5mm) Stereo Mini jack (Unbalanced) |
| for LINE connection | |
| Nominal Output Level | -14dBV (10k? load) |
| Maximum Output Level | +2dBV (10k? load) |
| Output Impedance | 12? |
| for Headphones connection | |
| Maximum Output Power | 20mW + 20mW (32? load) |
| USB | |
| Connector | USB Micro B-type |
| Format | USB2.0 HIGH SPEED |
| Built-in Speaker | 0.3W, Mono |
| Low-cut Filter | 40 / 80 / 120Hz |
| Chromatic Tuner | C1 to B6, A4 = 435Hz to 445Hz (in 1Hz increments) |
| Effector | 6 presets (Hall 1, Hall 2, Room, Studio, Plate 1, Plate 2) |
| Tripod attachment screw-hole | 1/4" Tripod attachment screw-hole |
| Power | 2 AA Batteries, USB bus power, AC 100 to 240V (optional AC Adapter) |
| Power Consumption | 1.7 W (Max) |
| Battery Operation Time (Recording) | |
| Alkaline (EVOLTA) | approx. 17.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA) |
| Ni-MH (eneloop) | approx. 15.5 hours (2ch WAV, 44.1kHz, 16-bit, using Built-in Microphone, JEITA) |
| Dimensions (W×H×D) | 2.4" × 5.55" × 1.02" / 61 × 141 × 26 mm |
| Weight | 4.1 oz. / 116 g |
Audio Performance
| Frequency Response | |
| Fs 44.1kHz | 20Hz to 20kHz, +1/-3dB (EXT IN to LINE OUT, JEITA) |
| Fs 48kHz | 20Hz to 22kHz, +1/-3dB (EXT IN to LINE OUT, JEITA) |
| Fs 96kHz | 20Hz to 40kHz, +1/-3dB (EXT IN to LINE OUT, JEITA) |
| Total Harmonic Distortion | 0.05% or less (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA) |
| Signal-to-Noise Ratio | 92 dB or higher (Fs 44.1k/48k/96kHz, EXT I Not LINE OUT, JEITA) |
Computer Requirements
Windows
| Computer | Windows PC with USB2.0 or USB3.0 port |
| CPU | Dual Core, 2GHz or faster (x86) |
| Memory | 2GB or more |
Macintosh
| CPU | Power PC, iMac, G3, G4, G5 266MHz or faster |
| Memory | 64MB or more |
| USB | USB2.0 recommended |
